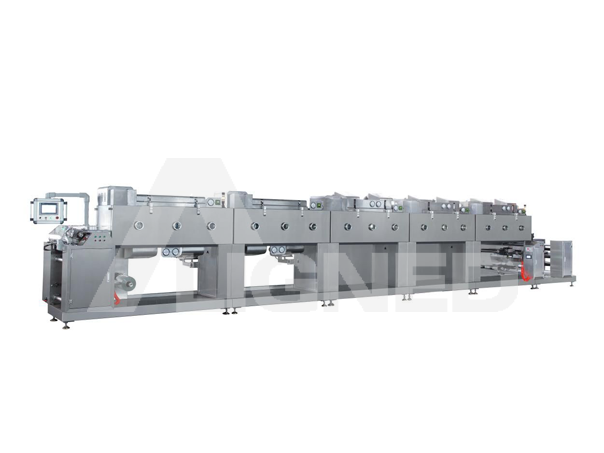

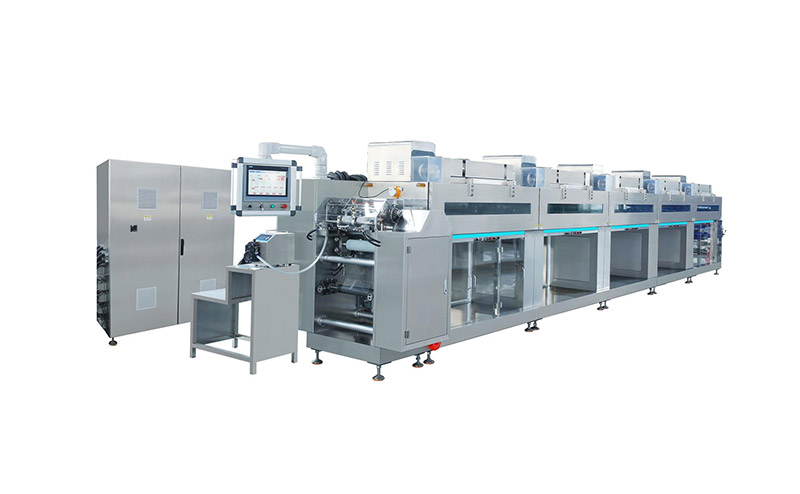

10 Meters Automatic Oral Dissolving Film Making Machine

01
01

Product detail

sample

product features

product features

01

product description

Performance & Features
High dosing accuracy, quick-dissolving, fast release, no swallowing difficulty, high acceptance by elderly and children, small size convenient to carry.

Working Principle

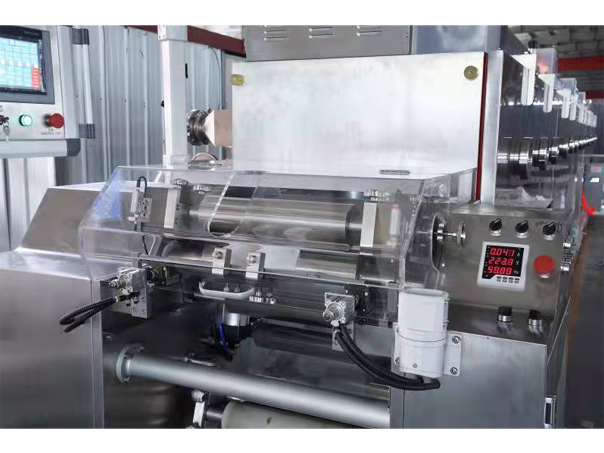

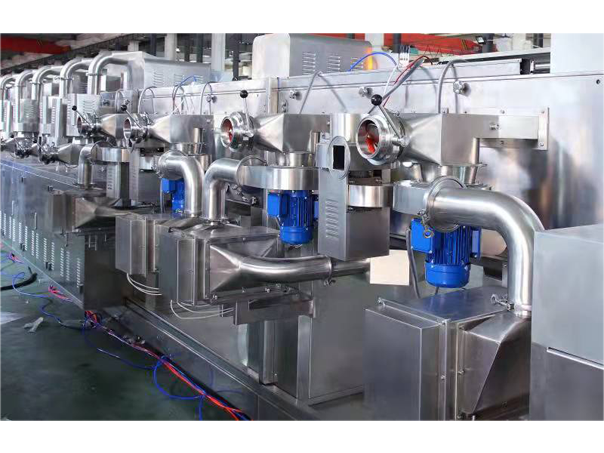

The working principle of the machine has evenly coated a layer of liquid material on the surface of the reel base roll. The solvent (moisture) is rapidly evaporated and dried through the drying channel. And winding up after cooling (or composite with another material). Then, get the final products of the film (composite film).
02

Technical parameters

Project

Parameter

Model

OZM-340/10

Oven Length

10M

Max Casting Width

360mm

Roll Width of Film

400mm

Running Speed

0.1m-1.5m/min (depends on formula and process technology)

Temperature Control

30~80℃±2℃

Power Supply

380V 50/60HZ100KW

Overall Dimension

L×W×H: 14000*1620*2050mm

Weight

About 8000KG

03

Associate machine
