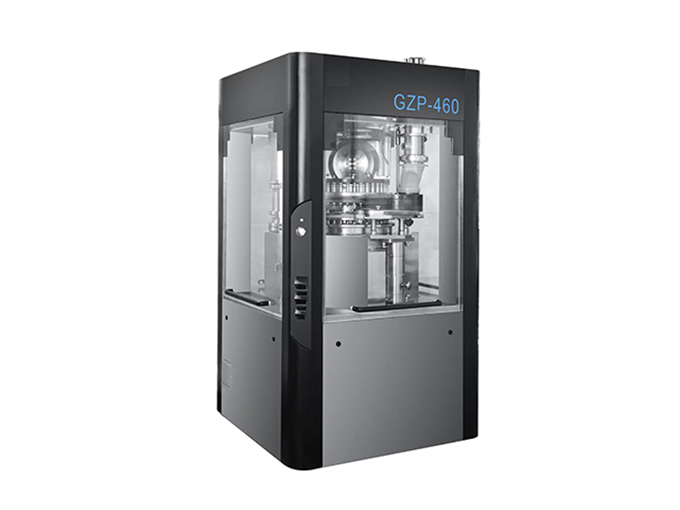

Product detail
sample
product features
product features
01
product description
1.Single side feeding and single side discharge. Multiple selection of forced feeder, basket feeder, and single blade wheel feeder.
2.The main engine can be operated with/without hand wheel and uses the motor for main prepressure adjustment and metering, with the adjustment accuracy of 0.01mm.
3.Tablet weight difference control: The average tablet weight control accuracy is within ±2%; when the weight of a single tablet is less than 0.3g, the tablet weight difference is controlled within ±5%. When the weight of a single tablet is no less than 0.3g, the tablet weight difference is controlled within ±3%.
4.Forced feeding solves the problem of insufficient gravity blanking, excessive dust and cross contamination of the ordinary tablet press.
4.Forced feeding solves the problem of insufficient gravity blanking, excessive dust and cross contamination of the ordinary tablet press.
5.Central lubrication system: The quantitative automatic pressure oil lubricating system with intermittent small flow is equipped with a high-precision micro distribution valve and a central lubrication pump.
6.Pressure support: The high strength mechanical pressure support system is used to completely eliminate the oil leakage caused by the original hydraulic support.
6.Pressure support: The high strength mechanical pressure support system is used to completely eliminate the oil leakage caused by the original hydraulic support.
02
Technical parameters
| Model | GZP-31 | GZP-38 | GZP-47 |
|---|---|---|---|
| Number of punches | 31 | 38 | 47 |
| Mold model | D | B | BB |
| Maximum Output range (10,000 tablets/hour) | 14880-186000 | 18240-228000 | 22560-282000 |
| Speed range(10,000 tables/hour) | 8-100 | ||
| Maximum main pressure force (KN) | 100 | ||
| Maximum prepressure force (KN) | 100 | ||
| Max. filling depth/mm | 20 | ||
| Table thickness rang/mm | 0.5–8.5 | ||
| Max. Tablet Diameter/mm | Φ5.5–25 | Φ5.5–16 | Φ5.5–13 |
| Long side range of special-shaped tablet/mm | <25 | <19 | ≤16 |
| Punch diameter/mm | 25.35 | 19 | 19 |
| Punch length/mm | 133.6 | ||
| No-load noise/dB | ≤82 | ||
| Main motor power/kW | 15 | ||
| Equipment dimensions/mm | 1150x1470x2100 | ||
| Net weight of equipment/kg | 4800 |
