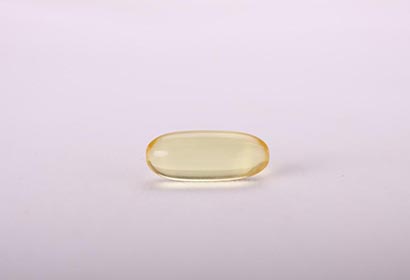

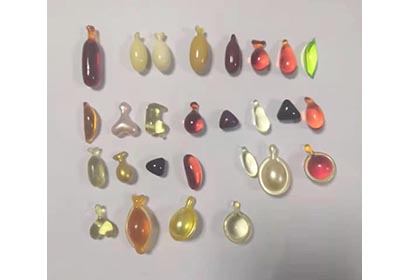

sample
product features
product features
01
product description

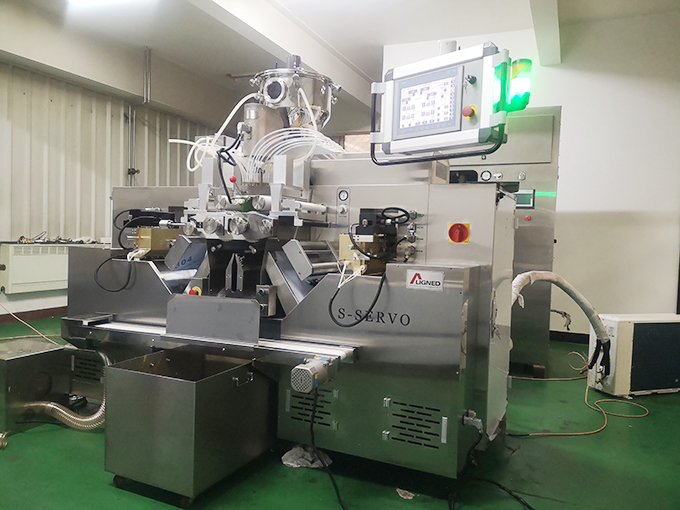

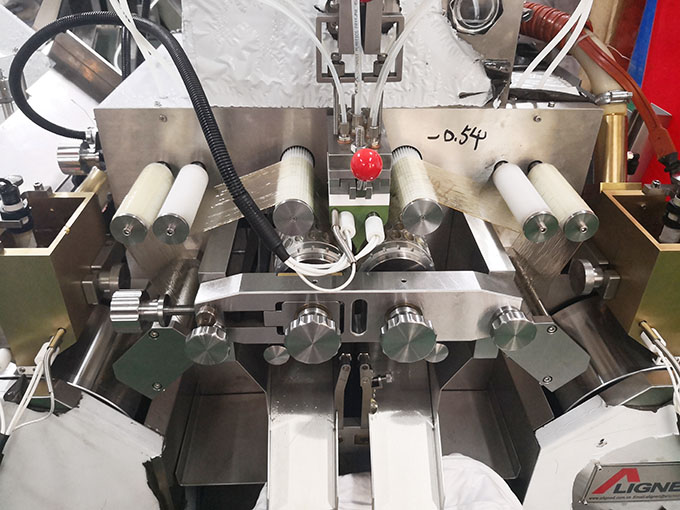

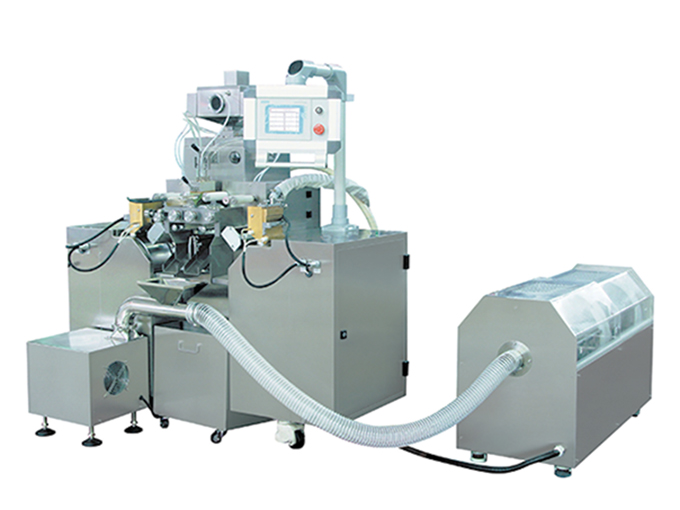

Integrated the latest global encapsulation technology with our gelatin encapsulation experience, YWJ fully automatic soft gelatin encapsulation machine is a new generation of soft gelatin encapsulation machine that has extremely large productivity (the largest in the world).The new soft gelatin encapsulation manufacturing facility features leading technology, simple but beautiful appearance, and it is another excellent product by our company for soft gelatin capsule clients around the globe.
Function

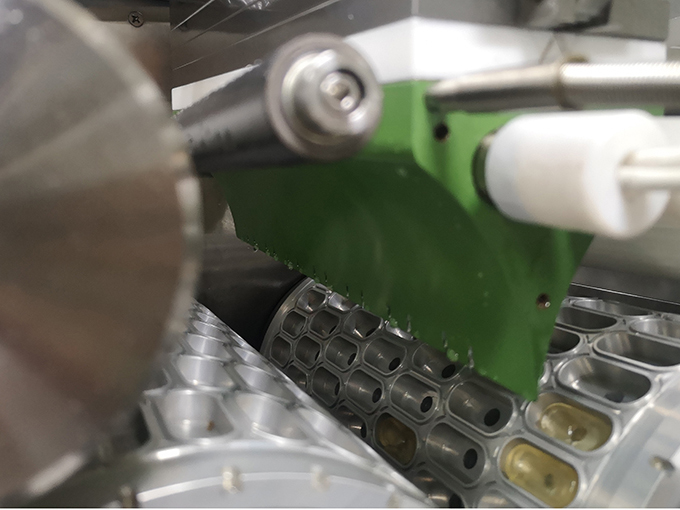

1. Water-bath Injector, the temperature fluctuated in +/-0.1℃, save 14% gelatin; improve 1.5% rate of finished products; and save the maintained cost and time.
2. Computer control the plunger pump, improve the precision of medicine injection volume, and save more medicine and material cost.

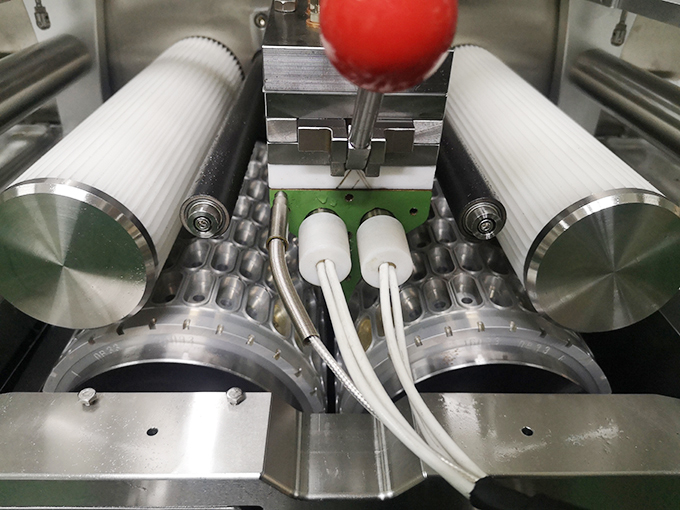

3. The holes of the left and right main axis are processed with extreme accuracy on the boring machine imported from Switzerland. Though the mould roll has been extended in length, can be keep high coaxial degree that guarantees the smooth seam and finished product rate of the softgel capsule.
4. Bigger cam drive plunger pump, can provide stronger to plunger pump. That make the machine can inject widely high viscosity of raw material, such as Suspension, Propolis (Bee glue), Soft phospholipids, Liquid calcium and Herbal suspension.
5. High quality and intelligence control system, PLC true color touch screen technology adopted by the electronic control system. All electric parts use world brand parts, such as Siemens, Schneider.
6. Professional PID temperature control technology is adopted on the machine, temperature of injector can be adjusted accurately. Improves ratio of finished products of soft gelatin capsule.
7. The touch screen provides professional “ recipe” function that can save the production paramters and recall them by one key.
8. The micro-lubrication device, can be adjust lubrication volume in fine volume, save cost.
9.Pneumatic clamping system makes capsule filling process more simple and reliable.
10.Motor hoisting injector can be fine located position as requirement, and reduce the workload of operator.
11.Speed of each gelatin film drum and main axis can be adjusted respectively by respectively invertor; that is controlled by operator according to actually requirement.
12.The opening of gelatin box is controlled accurately, the gauge showed gelatin film thickness. Easy to control the thickness.
13.Automatic controlled water-cooling system is adopted for the cooling of gelatin film, which is more safety and more reliable.
02
Technical parameters
| Model | YWJ100 |
YWJ200 |
YWJ250-lll |
YWJ315 |
Dimensions Of Rolling Mound |
Φ80x100mm |
Φ113x200mm |
Φ150x250mm |
Φ157x100mm |
Mould Cavity(8#OV) |
90pill |
260pill |
504pill |
629pill |
Rotating Speed Of Rolling Mould |
0-5rpm |
0-5rpm |
0-8rpm |
0-5rpm |
Single Plunger Feeding Volume |
0-1.5ml |
0-2ml |
0-2ml |
0-2ml |
Plunger Number |
6 |
14 | 20 | 24 |
Loading Accuracy |
± 1.5% |
± 1.5% |
± 1.5% |
± 1.5% |
Capacity |
21800 |
62400 |
205800 |
150960 |
Whole Machine Powder |
5kw |
12kw |
12kw |
12kw |
Weight |
400kg |
1300kg |
1500kg |
1500kg |
Overall Dimension |
1400x620x1350mm |
200x910x1900mm |
2200x1000x1900mm |
2100x1130x1900mm |
03

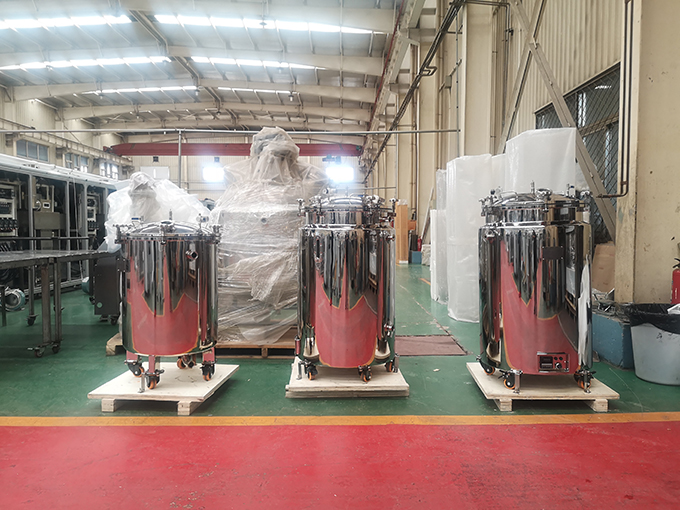

Associate machine
