product description

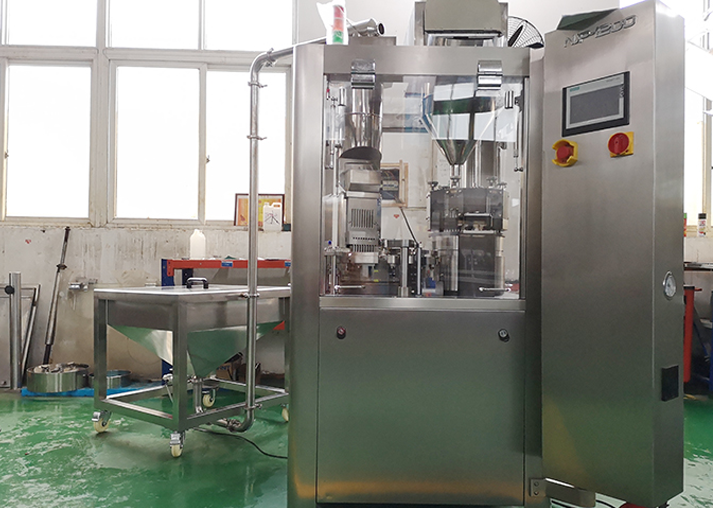

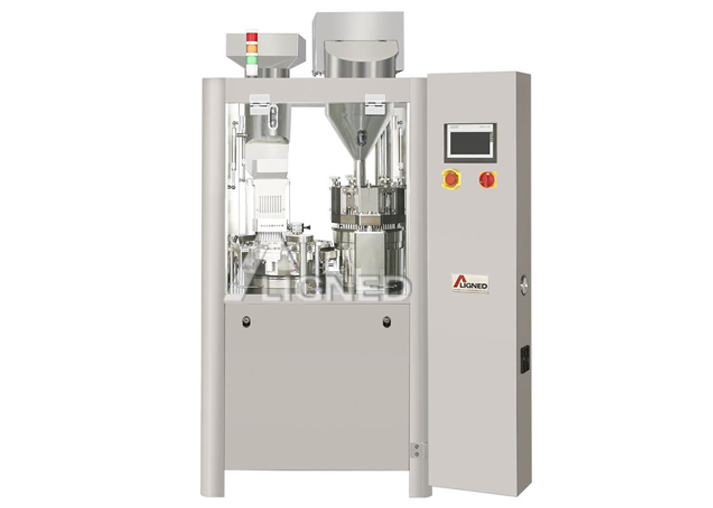

The automatic capsule filling machine is a kind of automatic hard capsule filling equipment with intermittent operation and orifice filling. The machine is optimized according to the characteristics of traditional Chinese medicine and the requirements of GMP, featuring compact structure, low noise, accurate filling dose, complete functions, and stable operation. It can simultaneously complete the actions of sow capsule, open capsule, filling, rejection, locking, finished product discharge and module cleaning. It is a hard capsule filling equipment for manufacturers of medicines and health products.
Working Principle

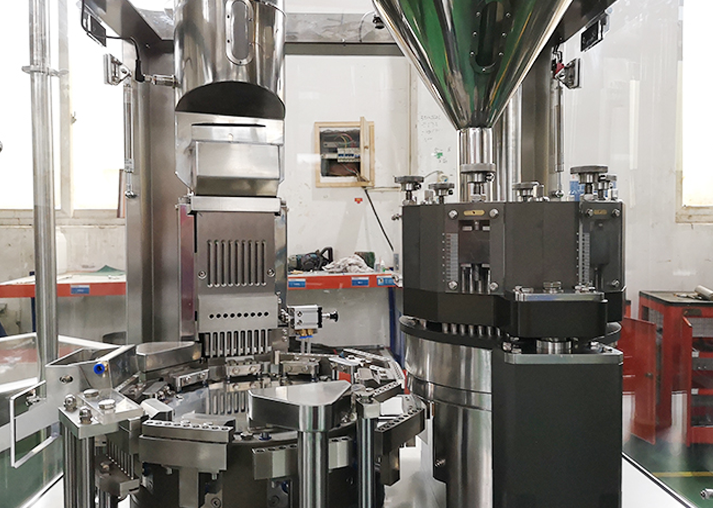

The capsules in the material hopper will continually upright get into sending device in dividing device when machine start to work. In the effect of direction push off and sending device, each capsule will be placed into module bores of first working position、second working position and third working position in the way of cap up body down, meanwhile, vacuum separation system will separate cap and body. The fourth working position is a sheave reserved position for buffer. In the fifth working position, upper module rise, apart from lower module. Filling device will push the pressed grain into the capsule in the sixth working position. The seventh working position is a cam reserved position for buffer. Those capsules which cap and body didn’t separated will be eliminated in the eighth working position. The ninth working position is the same as fourth working position. In the tenth working position, lower module retracted and combine with upper module, fastening and locking filling capsules in the effect of push rod, reach the requirement of finished product. In the eleventh working position, prefect fastening capsules will be pushed by push rod and collect. In the twelfth working position, clean up device clean the module and ready to get into next circulation.
Performance & Feature
1. Automatically change the direction of the capsule structure.
2. Capsule separation adopts the method of vacuum suction capsule body, and the buffer structure is designed to reduce the loss and noise.
3. Plug-type metering and filling device for powder, slider-type metering and filling device for pellets.
4. The filling rod station adopts a modular design, which is easy to disassemble and replace, and is marked with a scale to adjust the filling volume.
5. No material remains in the feeder cavity, reducing material waste.
6. When the viscosity of the material is high, the material on the punch rod can be scraped off by adjusting the cam to reduce sticking and punching.
7. Customized high-quality sealing rings greatly reduce the mechanical movement gap of powder entering, and all sealing rings can be easily disassembled and replaced independently.
8. Concealed Dust Extraction tubing: reduces dust and aesthetics.
2. Capsule separation adopts the method of vacuum suction capsule body, and the buffer structure is designed to reduce the loss and noise.
3. Plug-type metering and filling device for powder, slider-type metering and filling device for pellets.
4. The filling rod station adopts a modular design, which is easy to disassemble and replace, and is marked with a scale to adjust the filling volume.
5. No material remains in the feeder cavity, reducing material waste.
6. When the viscosity of the material is high, the material on the punch rod can be scraped off by adjusting the cam to reduce sticking and punching.
7. Customized high-quality sealing rings greatly reduce the mechanical movement gap of powder entering, and all sealing rings can be easily disassembled and replaced independently.
8. Concealed Dust Extraction tubing: reduces dust and aesthetics.
9. Adopt the second generation totally enclosed turntable design. The upper die adopts two shafts to move up and down circumferentially, and imported silica gel seals to reduce the powder feeding into and out of the rotary table; the lower die adopts two shafts to move in and out circumferentially, matched with imported rubber seals to reduce the situation of powder feeding due to the back and forth expansion of the moving shaft, and it is stable and has high precision; the double shafts are made of a press cover, easy to disassemble and assemble, easy to clean, and the sealing ring is not changed. It is necessary to turn on the turntable to avoid cumbersome defects due to the dismantling of the turntable.
10. It adopts three dimensional control elements; and takes the undersurface plane of dosage as base, so as to eliminate the matural transmutation of the dosing disc and copper saucer, it is uniformity in interval and guarantees the accurate of filling weight, decreasing the phenomena of powder leak and easy to clean.
11. It adopts capsule vacuum positioning machanism to make the capsule qualified over 98%.
12. Add the extra function of Capsule control switch. Control the capsule outside of the machine: it’s more safely and quickly.
13. The modular closed powder filling mechanism is adopted, which is easy to assemble and disassemble and easy to clean.
02
Technical parameters
| Model | NJP-200 |
NJP-400 |
NJP-800 |
NJP-1200 |
NJP-2300 |
NJP-3500 |
| Capacity(Capsules/h) | 12000 |
24000 |
48000 |
72000 |
138000 |
210000 |
| Machine Weight(kg) | 700 |
800 |
900 |
1100 |
1500 |
2200 |
| Overall Dimension(mm) | 610*680*1800 |
760*780*1800 |
840*820*1900 |
860*940*1900 |
1010*1080*2000 |
1170*1560*2000 |
| Power Supply | 380/220V 50Hz |
380/220V 50Hz |
380/220V 50Hz |
380/220V 50Hz |
380/220V 50Hz |
380/220V 50Hz |
Total Power(KW) |
3 | 3 | 4 | 5 | 8 | 10.5 |
No.of Segment Bores |
2 | 3 | 6 | 9 | 18 | 25 |
Vacuum |
20m^3/h-0.04-0.08Mpa |
40m^3/h-0.04-0.08Mpa |
63m^3/h-0.04-0.08Mpa |
120m^3/h-0.04-0.08Mpa |
||
Making Rate |
Empty capsule 100%Full,capsule over 99% |
|||||
Suitable For Capsule |
00,0,1,2,3,4,5# |
|||||
Filling Error |
±2.5%-±3.5% |
|||||
