Product detail
sample
product features
product features
01
product description
- Suitable for 00#-5# capsule for powder and granule filling

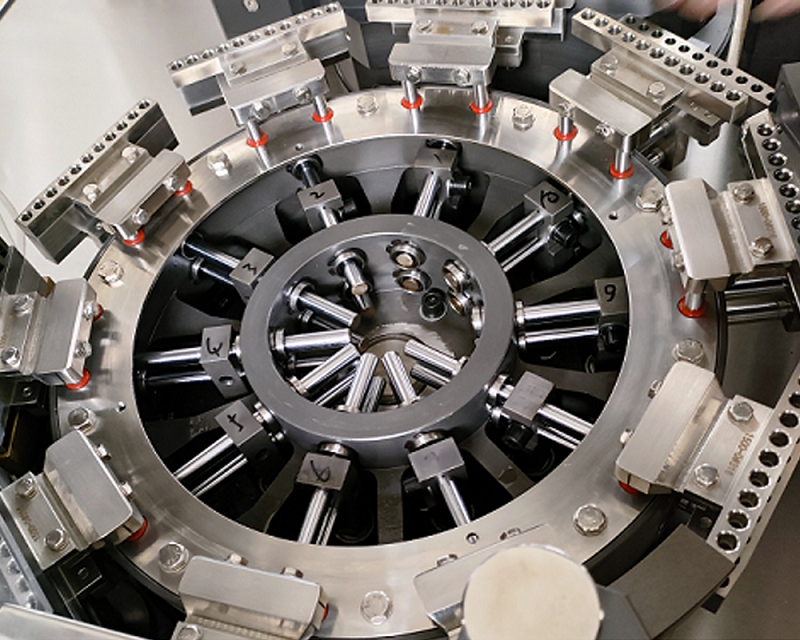

- The internal cam at the bottom of the main engine is fixed on the thickened base with a steel frame to increase the stability of the machine, and the repair/replacement time is only 5 minutes
- The mold cleaning device clears the dust deposited in the mold and reduces the scrap rate of the capsule

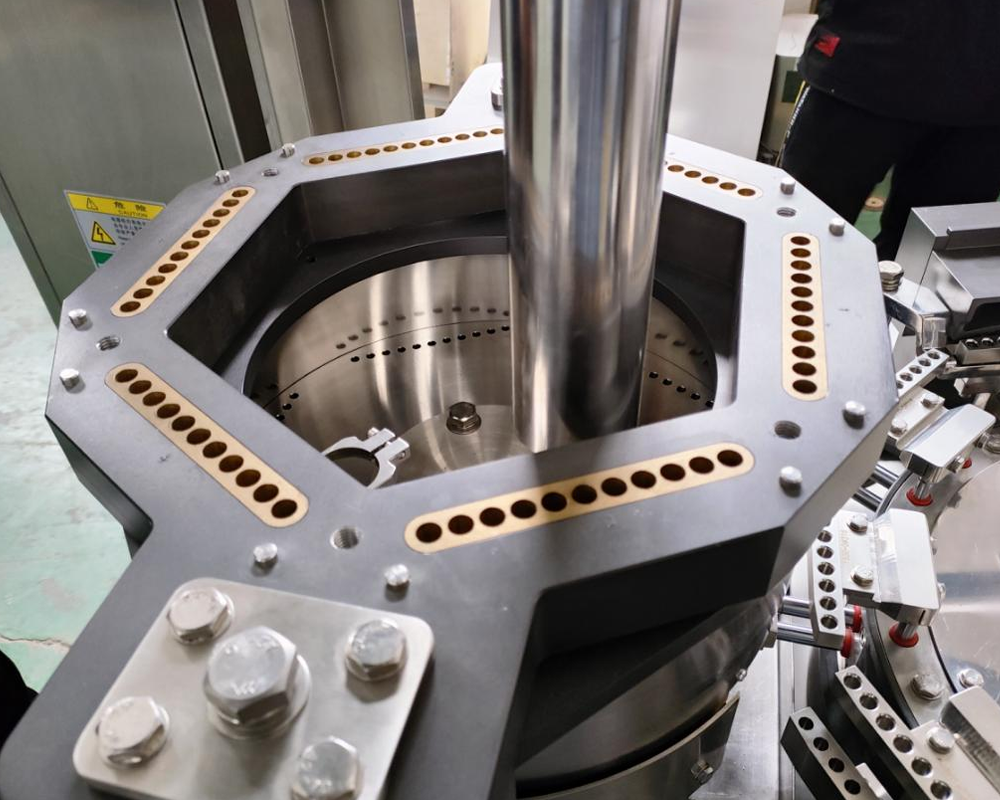

- The newly designed copper pad greatly reduces the powder leakage. It not only avoids powder falling down and polluting the workbench, but also reduces the waste of raw materials

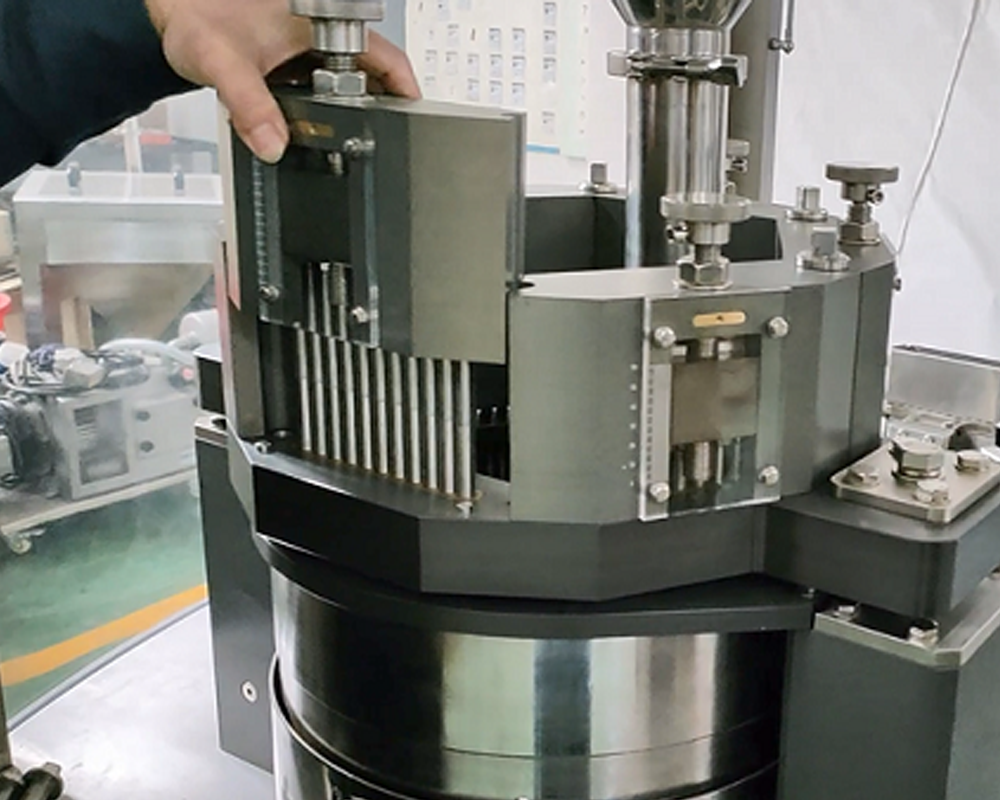

- The filling station adopts modular design. It only takes 10 minutes to replace all the filling stations
- The locking device adds a cleaning function to keep the resulting capsules clean
- When replacing from powder filling to particle filling, the whole replacement can be completed within 15 minutes
02
Technical parameters
Model |
CFK-1500 |
CFK-2500 |
CFK-3500 |
Output （Capsules/min） |
1500 |
2500 |
3500 |
No.of segment bores |
11 |
18 |
25 |
Suitable for capsule |
00#-5# |
00#-5# |
00#-5# |
Total power |
8.5Kw |
8.5Kw |
11.5Kw |
Overall weight |
1400Kgs |
1650Kgs |
2635Kgs |
Overall dimension |
1230mm×1175(+382)mm×1955mm |
1230mm×1175(+382)mm×1955mm |
1435(+550)mm×1248(+280)mm×1960mm |
Dust |
20Kpa 210m3/h |
20Kpa 210m3/h |
20Kpa 210m3/h |
Noise |
<80DB（A） |
<75DB（A） |
<75DB（A） |
Vacuum |
72m3/h, -0.03—0.05Mpa |
72m3/h, -0.03—0.05Mpa |
120m3/h, -0.03—0.05Mpa |
Filling error |
±2.5%—±3.5% |
±2.5%—±3.5% |
±2.5%—±3.5% |
03

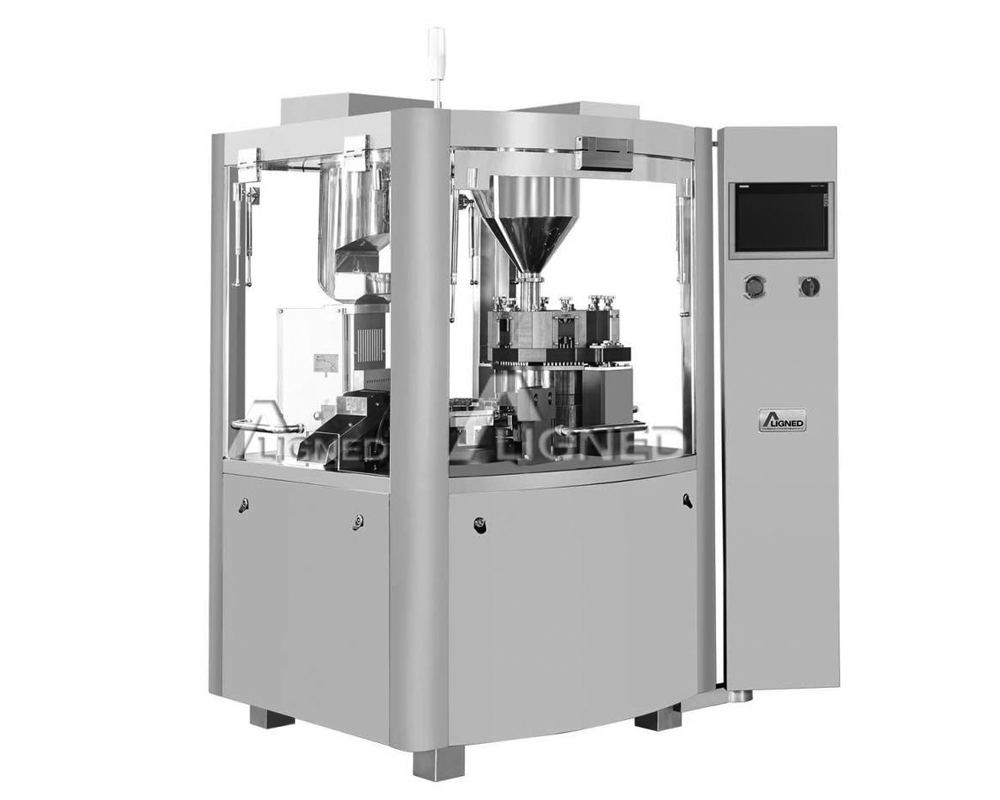

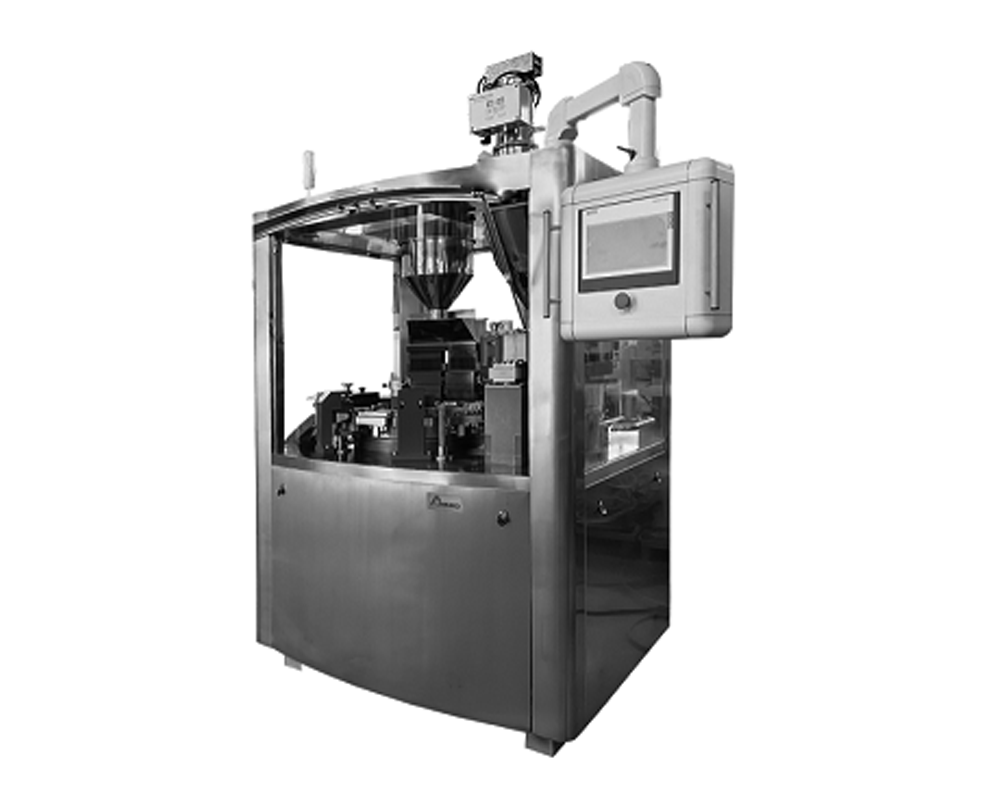

Associate machine
