product description

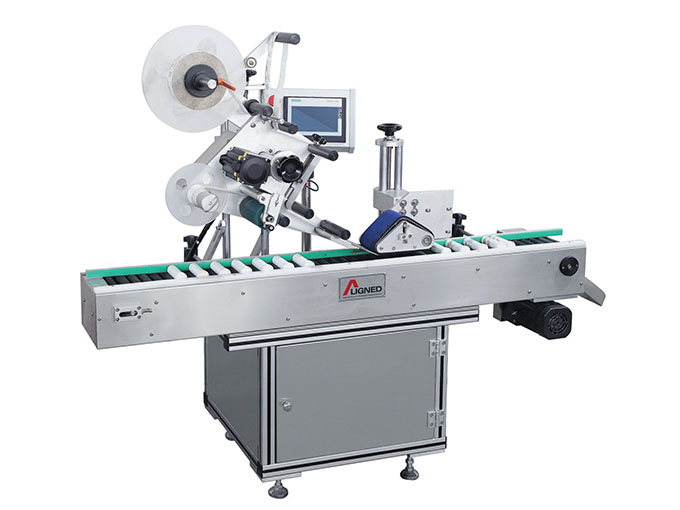

This equipment automatically completes the automatic feeding, positioning, labeling, pressing and ensures label consistent alignment, the action is accurate and stable. It is specially designed for high-speed bottling machines and can be operated online.
02
Technical parameters
|
Power supply |
AC220V 50/60HZ |
|
Power |
0.9KW |
|
Labeling Speed |
0-300 tube/min (According to the bottle size and label size) |
|
Labeling Accuracy |
±0.5mm（Except the error of the labeled object and labels） |
|
Tube Diameter |
20-120mm |
|
Label Size |
H20-30mm L25-100mm |
|
Temperature Control |
40~100℃±3℃ |
|
Max.Label Roll Size |
Outer dia.380mm, Inner dia.76mm |
|
Weight |
100KG |
|
Overall Size |
1600x600x1500mm |
