product description

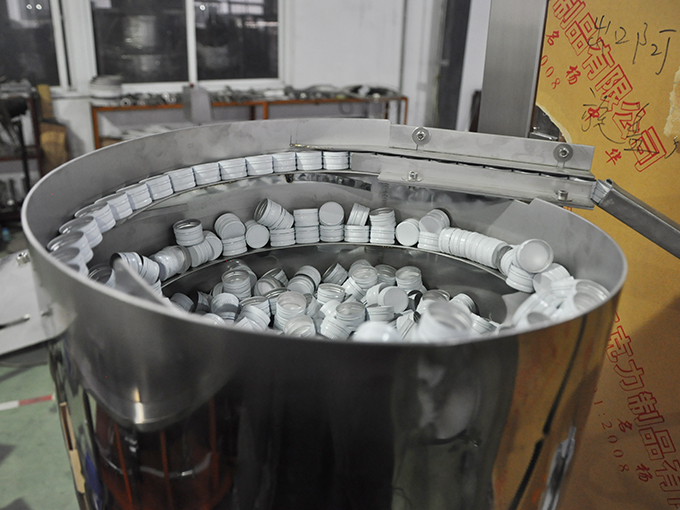

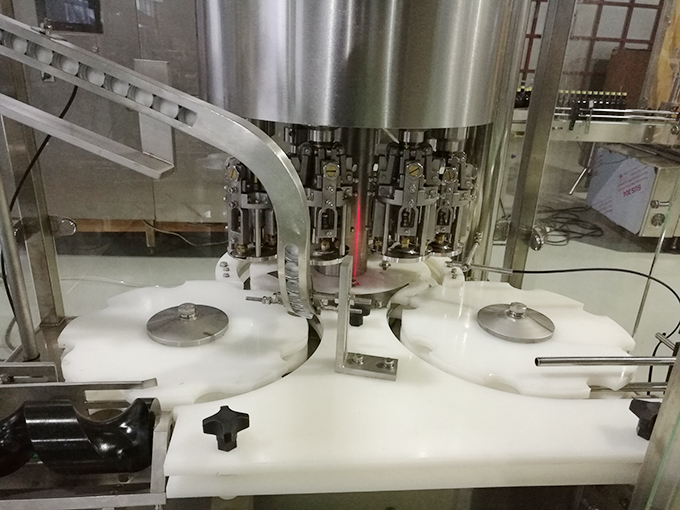

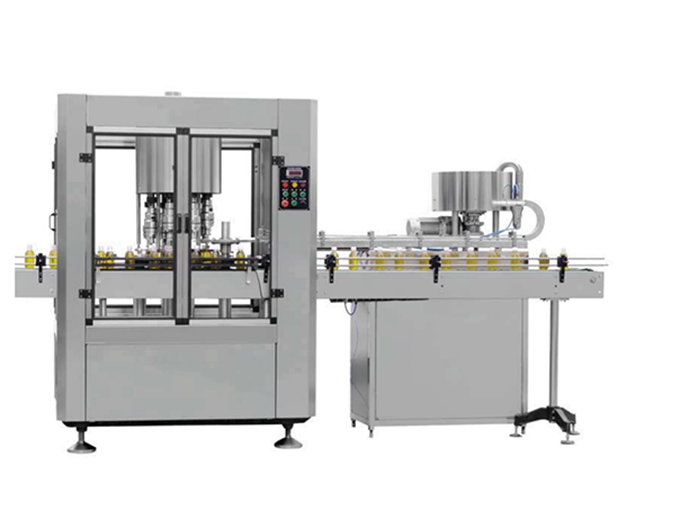

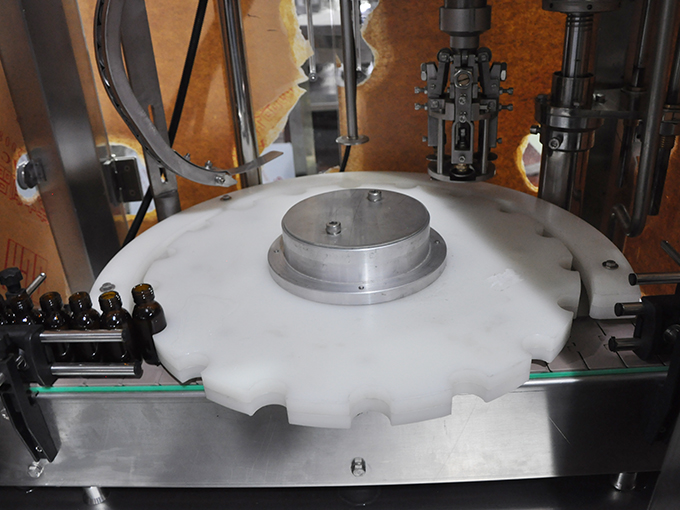

ALC Automatic chuck capping machine for the application of plastic/glass bottles capping. The machine is composed by a conveyor, bottle index wheel, cap unscrambler, cap chute &placer, screwing capper. The bottle loading/unloading through conveyor manually, or automatic directly from an production line. It is designed and made accordance to GMP regulation.
02
Technical parameters
|
Die Amount |
ALC/4 |
ALC/6 |
ALC/8 |
ALC/12 |
ALC/18 |
|
Applicable Bottle Size |
Φ20-φ150mm |
||||
|
Cap Size Range |
Φ12-φ70mm | ||||
|
Production Capacityr |
60-80Bmp |
80-100Bmp |
100-130Bmp |
130-160Bmp |
160-210Bmp |
|
Yield Of Capping |
≥99% |
||||
|
Power Supply |
220/380V 50Hz |
||||
|
Power Consumption |
≤2KW |
||||
|
Air Pressure Range |
0.4-0.6Mpa |
||||
|
Speed Control |
Frequency Conversion Adjustable Speed |
||||
|
Single Machine Noise |
≤70DB |
||||
|
Net Weight |
≈2000KG |
||||
|
Overall Dimensions |
2000×1100×1600 |
||||
